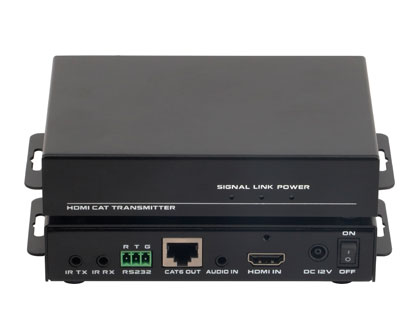

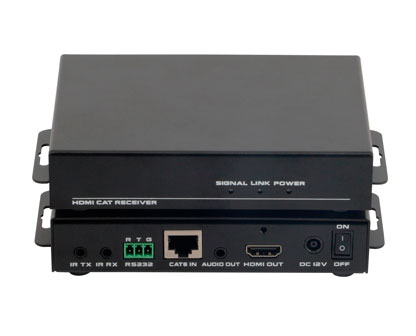

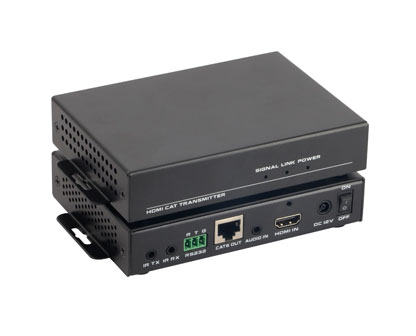

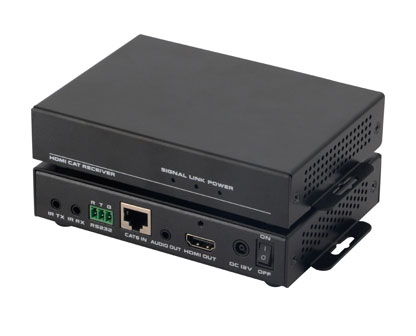

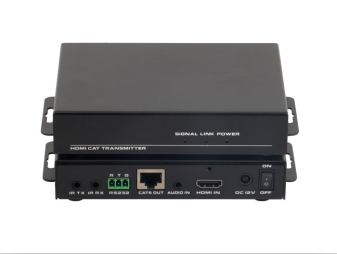

4K30 HDMI Extender HDBaseT transmitter and receiver is an AE version HDMI extender which is using the advanced HDBaseT technology. It can transmit the HDMI signal, audio embedded/de-embedded, bi-directional IR and RS232 signal over single LAN cable(recommended the STP Cat5e/6/7) up to a long distance and only need to power on one side with the POC function.
| Tyoe | HDBT-HD-70/100T-AE |
|---|---|
| Input | 1×HDMI, 1×R-Rx, 1×R-Tx, 1×RS232 |
| Output | 1×HDBaseT |
| Standard Protocol | Supports HDMI 1.4 and compatible HDCP 1.4 |
| Resolution | Up to 3840×2160@60Hz |
| Bandwidth | 10Gbps |
| Distance | 1080p: 70/100m(230/330feet), 1080p60Hz:70m(Cat6/7) |
| Dimension | 115*84*16(mm)(Tx/Rx)/ 4.52*3.30*0.63（inch) |
| Weight | 160g(Tx/Rx) 0.35lbs |
| Power Supply | AC：100-240V 50/60Hz 1.5A Max, DC：12V 1500mA |
| Power consumption | ≤10W |
| Working Temperature | 0℃-50℃ |
| Storage Temperature | ﹣20℃-55℃ |

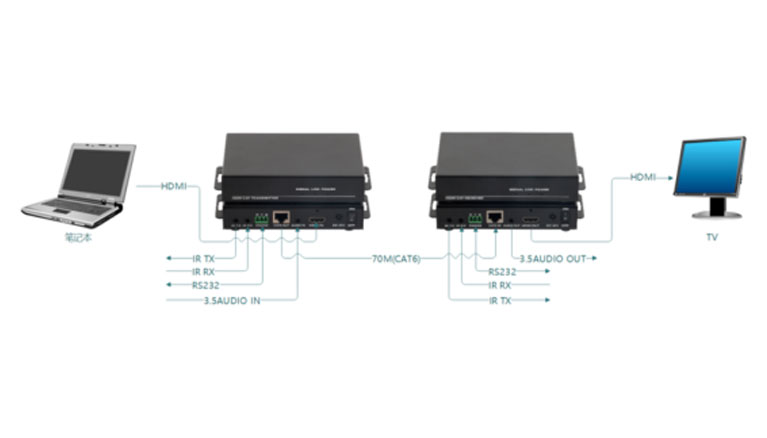

4K30 HDMI Extender HDBaseT transmitter and receiver is an AE version HDMI extender which is using the advanced HDBaseT technology. 4K30 HDMI Extender HDBaseT transmitter and receiver can transmit the HDMI signal, audio embedded/de-embedded, bi-directional IR and RS232 signal over single LAN cable(recommended the STP Cat5e/6/7) up to a long distance and only need to power on one side with the POC function. 4K30 HDMI Extender HDBaseT transmitter and receiver also can can work with other HDBaseT equipment, such as Sony HDBaseT projector. For the 1080P60Hz resolution, it can transmit to a distance of 70m/220ft(100m/330ft), for 4K30Hz it can up to 35m/110ft(70m/220ft). This extender kit can support the EDID management on the transmitter, compliant with HDMI1.4, HDCP1.4.
4K30 HDMI Extender HDBaseT transmitter and receiver can be popularly used in media conferencing room, school, government, cinema and so on applications.
·HDBaseT technology HDMI Extender
·Extend 4K/30(4:4:4) video & IR & RS232 Control
·Transmission distance up to 70/100m 220/330ft(1080P60) or 35/70m 110/220ft(4K30)
·HDMI1.4a and HDCP1.4
·RS232 and IR signal transmission, POC function
·EDID management and 3.5mm audio embedded on the transmitter
·Support 3.5mm audio de-embedded on the receiver
