4K60 HDMI Extender w/Loop is a UHDT HDMI Extender which support the 4K60 444 HDMI signals transmission over single Cat 6/7 cable, the distance can up to 70m/220ft for 4k60(4:4:4), for 1080P60 can up to 100m/330ft.
| Tyoe | UHDT-4K60-70/100R, UHDT-4K60-70/100T |
|---|---|
| Discription | HDT 4K60 HDMI Receiver, UHDT 4K60 HDMI Transmitter |
| Input | 1×CAT, 1×HDMI, 1×IR |
| Output | 1×CAT, 1×HDMI, 1×HDMI loop, 1×IR |
| Protocol | HDCP2.2, HDMI2.0 |
| Resolution | Up to 4K@60Hz(4:4:4) |
| Bandwidth | 18Gbps |
| Distance | 200x72x27(mm)/7.87×2.83×1.06（inch) |
| Weight | 400g(Tx/Rx) 0.88lbs |
| Power Supply | AC：100-240V 50/60Hz 1.5A Max, DC：12V 1500mA |
| Power consumption | 1.8W |
| Working Temperature | 0℃-50℃ |
| Storage Temperature | ﹣20℃-55℃ |

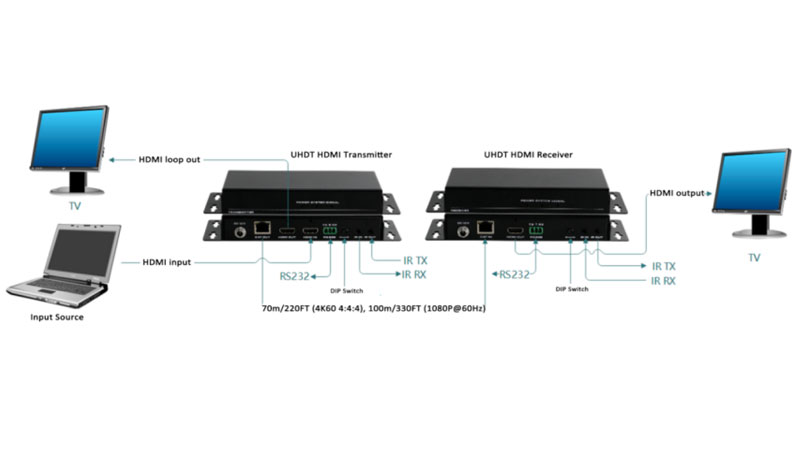

4K60 HDMI Extender w/Loop is a UHDT HDMI Extender which support the 4K60 444 HDMI signals transmission over single Cat 6/7 cable, the distance can up to 70m/220ft for 4k60(4:4:4), for 1080P60 can up to 100m/330ft. 4K60 HDMI Extender w/Loop supports HDMI loop out on the transmitter and the DIP switch for transmitting the RS232 or the bi-directional IR, with the POC function, users will only need to use the power adapter to power on either side. 4K60 HDMI Poc Extender w/Loop can be used for home theater, church, exhibition and so on ultra resolution requirement applications.
·Supports HDMI loop out on the transmitter
·Supports a DIP switch to user RS232 or the bi-directional IR
·The resolution up to 4K60 4:4:4, 18GBPS
·Distance can up to 70m/220ft at 4K604:4:4 or 100m/330ft for 1080P@60Hz
·Supports HDMI2.0, HDCP2.2, HDR10
·POC function
