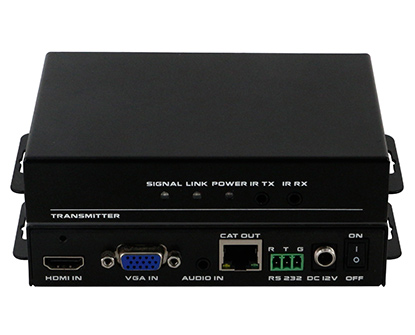

HDBaseT HDMI Extender 4K is an HDBaseT technology extender, HDBaseT HDMI Extender 4K supports no compression, no losses, no latency HDMI signal transmission. It can can work with other HDBaseT equipment, such as Sony HDBaseT projector.
| Model | HDBT-HD-40/70R-4K60, HDBT-HDV-40/70T-4K60 |
|---|---|

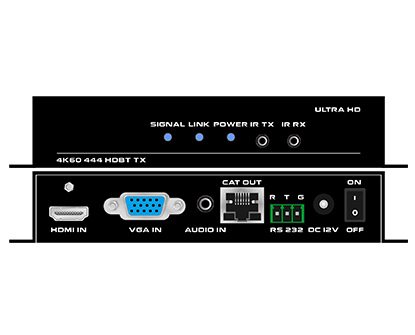

| Input | 1*HDBaseT RJ45, 1×3.5mm Audio, 1×HDMI, 1×IR-Rx, 1×IR-Tx, 1×RS232, 1×VGA |

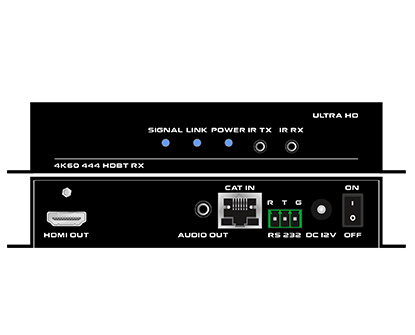

| Output | 1*HDBaseT RJ45, 1×3.5mm Audio, 1×HDMI, 1×IR-Rx, 1×IR-Tx, 1×RS232 |
| Protocol | EDID management, Support HDMI2.0a and compatible with HDCP2.2 |
| Resolution | 1080i, 1920 x 1080p up to 60Hz, 3840/4096 x 2160 up to 60Hz, 480i, 480p, 576i, 576p, 720p |
| Color Space | 1080p: 36Bit Deep Color, 4K60: 8Bit True Color, 4:4:4 |
| Bandwidth | 18Gbps |
| Transmission Distance | CAT5e/6 cable: for 1080p can up to 70m(230ft)/ 100m(330ft) |
| Dimension | 152*100*27mm(5.98*3.94*1.06inch) |
| Weight | 450g(0.99lb) |
| Power Supply | AC：100-240V 50/60Hz 1.5A Max, DC：12V 1500mA |
| Power consumption | ≤39W |
| Working Humidity | 10%-90% |
| Working Temperature | 0℃-50℃ |
| Storage Temperature | ﹣20℃-75℃ |

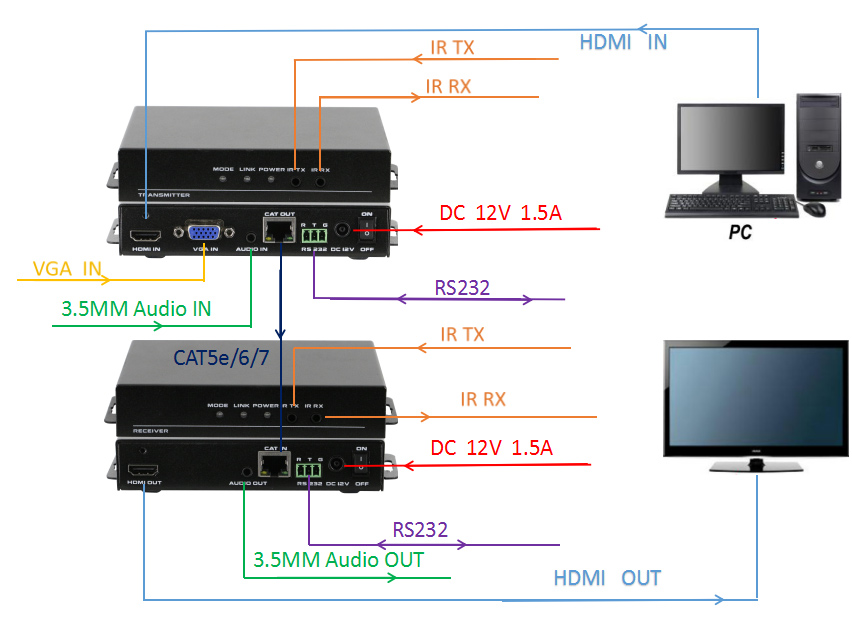

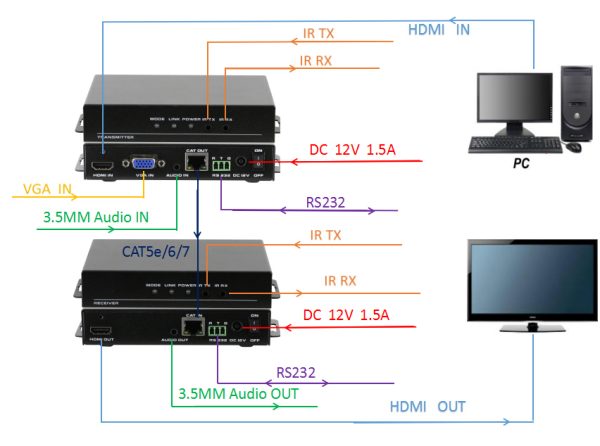

HDBaseT HDMI Extender 4K is an HDBaseT technology extender, HDBaseT HDMI Extender 4K supports no compression, no losses, no latency HDMI signal transmission. HDBaseT HDMI Extender 4K can work with other HDBaseT equipment, such as Sony HDBaseT projector. All the signals are transmitted by one single CAT5e/6/7 cable, for 1080P HDBaseT HDMI Extender can transmit to a distance of 70m(230ft)/ 100m(330ft), for 4K60Hz 4:4:4, HDBaseT HDMI Extender can up to 40m(130ft)/70m(220ft). Compatible with all the HDTV resolutions, HDMI2.0a protocol. HDBaseT HDMI Extender 4K also support bi-directional RS232 and IR transmission and realize the long distance control. HDBaseT HDMI Extender 4K supports power over cable(POC) function, users only need to power one side; HDBaseT HDMI Extender 4K supports 3.5mm Audio embedded and de-embedded, HDBaseT HDMI Extender 4K can help users to have more choice whether the internal or external audio input and output; HDBaseT HDMI Extender 4K supports EDID manage nt, HDBaseT HDMI Extender 4Kprovides users a wider way to work with different displays. So HDBaseT HDMI Extender 4K can be popularly used in media conferencing room, school, government, cinema and so on applications.
·Transmit highest quality audio and video, for 1080p can up to 70m(230ft)/ 100m(330ft) and 4K60Hz 4:4:4 can up to 40m(130ft)/70m(220ft) with Cat5e/6/7 cable
·Highest resolutions supported up to 3840 (UHD) and 4096 (DCI) 2160p 4K video@60Hz with 4:4:4, 18Gbps transmission
·Equipped with EDID management capability
·Bidirectional IR/Serial control signal transmission
·Power over Cable (POC) locally powered over Cat5e/6 cable at either end
·Supports 7.1 DTS Master HD, Dolby True HD
·3.5mm Audio embedded and de-embedded
·Using the IEEE-568B Cat termination
