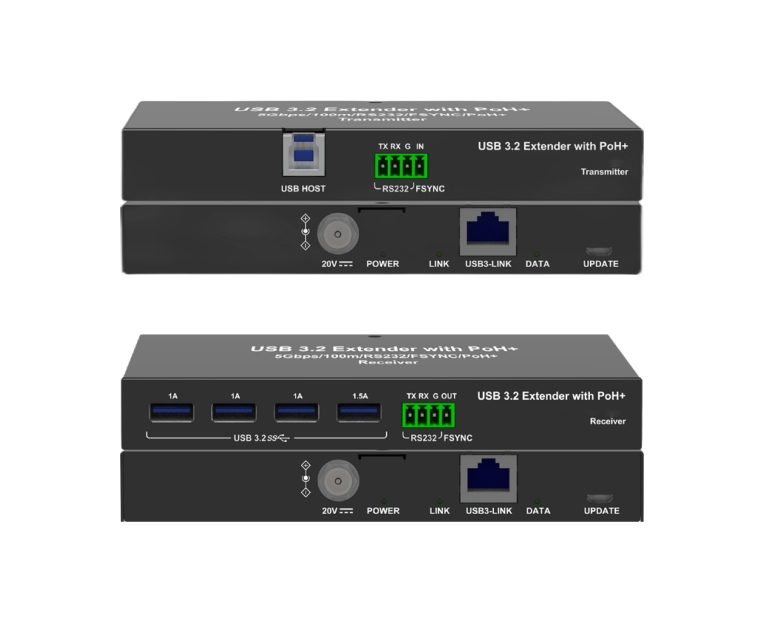

This product is a new generation of USB 3.2 & USB 3.0 extender. It supports USB 3.2 Gen 1 standard with up to 5Gbit/s USB data transmission rate, and is backward compatible with USB 3.0, USB 2.0 and USB1.1 specifications.
| Input | 1 x FW (Micro-USB), 1 x POWER, 1xRS232&FSYNC, 1xUSB3-Link(RJ45) |
|---|---|
| Output | 1 x FW (Micro-USB), 1 x POWER, 1 X USB3-LINK (RJ45), 1x RS232 & FSYNC, 4 x USB DEVICE (USB Type-A) |
| Storage Temperature | -20-70℃ |
| Working Humidity | 10%-90% |
This USB extender can extend the USB 3.2 & USB 3.0 data up to 100m/330ft via a single Cat 6a/7 F/FTP or U/FTP cable. It has a built-in 4-port USB hub in the receiver, which can be connected with multiple USB devices. It adopts advanced USB data transmission technology, and only occupies one USB tier. For multiple USB device scenarios, this extender can also be used with an external USB 3.2 & 3.0 hub.
Supports USB 3.2 Gen 1 standard, and backward compatible with USB 3.0, USB 2.0, and USB 1.1 standards.
Supports up to 5Gbit/s data transmission rate.
Supports transmitting USB signal up to 100m/330ft via a signal Cat 6a/7 F/FTP or U/FTP cable.
Pure hardware architecture is compatible with Control / Bulk / Interrupt / Isochronous transmission protocols.
Provides four USB 3.2 & 3.0 device ports on the receiver, includes one 1.5A port for connecting high-power USB devices.
Occupies one USB hub tier and supports connecting additional USB hub devices.
Supports RS232 and FSYNC GPIO pass-through for industrial camera control.
Plug and play, no driver is required, and compatible with multiple operating systems.
Support firmware upgrading via micro-USB port.
Built-in two-way PoH + modules, only needs to be connected to one power adapter to the transmitter or receiver to power both units.
